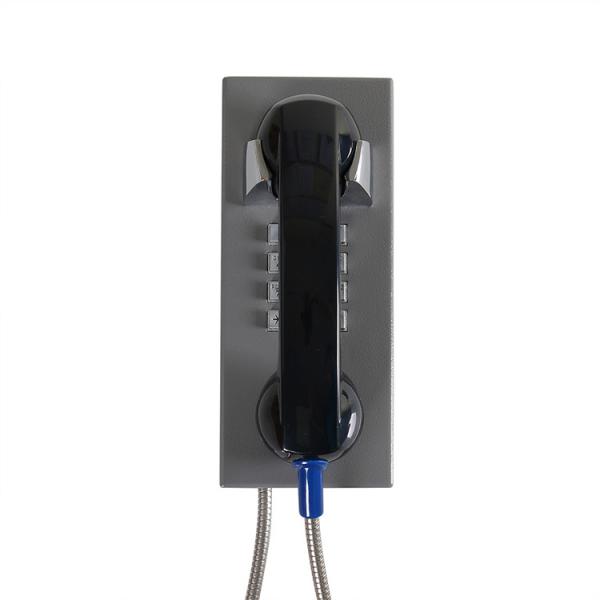

PSTN IP65 Stainless Steel Analog Telephone With Keypad

    Buy cheap PSTN IP65 Stainless Steel Analog Telephone With Keypad from wholesalers

    Buy cheap PSTN IP65 Stainless Steel Analog Telephone With Keypad from wholesalers
    • Buy cheap PSTN IP65 Stainless Steel Analog Telephone With Keypad from wholesalers
    • Buy cheap PSTN IP65 Stainless Steel Analog Telephone With Keypad from wholesalers
    • Buy cheap PSTN IP65 Stainless Steel Analog Telephone With Keypad from wholesalers
    • Buy cheap PSTN IP65 Stainless Steel Analog Telephone With Keypad from wholesalers
    • Buy cheap PSTN IP65 Stainless Steel Analog Telephone With Keypad from wholesalers
    • Buy cheap PSTN IP65 Stainless Steel Analog Telephone With Keypad from wholesalers

    PSTN IP65 Stainless Steel Analog Telephone With Keypad

    Ask Lasest Price
    Brand Name : J&R
    Model Number : JR202-FK
    Certification : CE, FCC, RoSH, ISO9001
    Price : US$119 - US$250
    Payment Terms : L/C, T/T, Western Union,PayPal
    Supply Ability : 3000 sets per month
    Delivery Time : 3-5 working days after payment
    • Product Details
    • Company Profile

    PSTN IP65 Stainless Steel Analog Telephone With Keypad


    Detailed Presentation

    JR202-CB PSTN Wholesale Telephone With Keypad



    JR202-FK Vandal Resistant Handset Telephone ihas the characteristics of simple installation, easy handle, stable operation and strong compatibility. Phone accessories and phone shell color can be customized.


    The telephone adopts stainless steel panel with strong vandal proof feature. The handset, keypad, circuit board and other accessories are made of multi-layer waterproof and dustproof materials.


    Casing MaterialRobust Cold-rolled steel body (CRS)
    Colors

    Color Optional,Gray as standard

    Handset MaterialABS material handset with stainless steel spiral cord
    Keypad

    Weather sealed tactile digital keypad.

    Chrome key and frame made of zinc alloy.

    Vandal resistance.

    Temperature

    Operating: -30°C to +65°C

    Storing: -40°C to +75°C

    Weather ResistanceIP65
    Ringing ToneShrill warble tone 85 dBA at 1 metre typical
    Hook switchElectronic / magnetic with no visible moving parts
    M.T.B.F.Calculated to have an M.T.B.F. in excess of 50,000 hours using
    WeightUp to 4 kg depending on option



    Technical Specification

    PSTN Wholesale Telephone With Keypad




    Analogue Version
    Power SupplyFrom the analogue telephone network
    Supply Voltage24 VDC to 65 VDC
    Supply Current20 mA DC to 100 mA DC
    Ringer Volume- 80dB(A) at a distance of 1 m
    - 110dB(A) at a distance of 1 m (for external horn speaker)
    Dialing MethodDTMF mode in accordance with ITU-T recommendation Q.23.

    SIP Version
    Power SupplyPoE or 12V DC
    Power Consumption-Idle:1.5W
    -Active:1.8W
    SIP ProtocolSIP 2.0 (RFC3261)
    Support CodecG.711 A/U, G.722 8000/16000, G.723, G.729
    Communication TypeFull duplex
    Ringer Volume- 90~95dB(A) at a distance of 1 m
    - 110dB(A) at a distance of 1 m (for external horn speaker)

    Ambient conditions
    Protection TypeIP 66 as per EN60529
    Operating Temperature-30°C to +70°C
    Storage Temperature-40°C to +75°C


    Applications

    PSTN Wholesale Telephone With Keypad


    JR202-FK PSTN Wholesale Telephone With Keypad is suitable for tunnel, railway, underground mine, prison, guard room, bank and many other areas.


    Packing & Delivery

    PSTN Wholesale Telephone With Keypad



    Unit Size240 *100 *106 (mm)
    Carton Size340 *235 *165 (mm)
    Packaging MaterialsPearl cotton, carton
    Net Weight2.7 KG
    Gross Weight3 KG


    PortShenzhen, Guangdong
    Lead Time
    (If you finish the payment today, your order will ship out within the delivery date.)
    Quantity(Sets)12-500>500
    Est. Time(Days)225To be negotiated


    Customised Accessories

    PSTN Wholesale Telephone With Keypad



    J&R provide LOGO printing and accessories customization services.

    We will also provide suitable solutions according to the needs of customers.


    HOOK FUNCTION: Magnetic hooks for choice

    KEYBOARD SHAPE: Round buttons and square buttons for choice

    INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

    MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice

    HADSET CORD: Black curly handset cord or stainless steel spiral cord

    If you have any custom requirements, please feel free to contact us.



    Our Company

    PSTN Wholesale Telephone With Keypad


    J&R Technology has long-term cooperated with many well-known international companies to steadily promote product development and innovation. The telephones like industrial telephones, weatherproof telephones and explosion-proof telephones and many other products are adopted by large mines, municipal projects and outdoor scenic spots.
