Emergency Outdoor Industrial Rainproof Telephone for Underground
with Light
Product Description

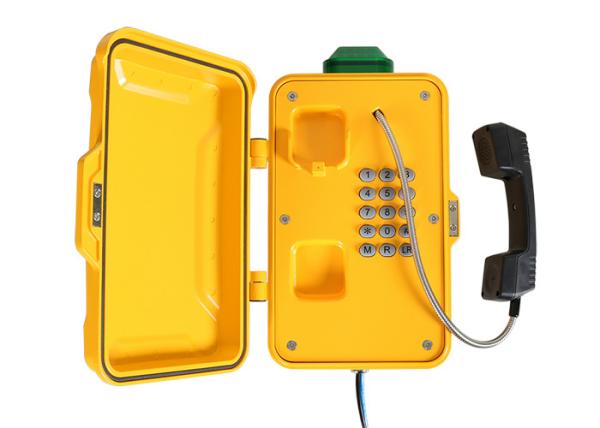

The JR100 series telephones are full contained within a corrosion
resistant cast aluminum weatherproof case with a door providing
complete protection against dust and moisture ingress, resulting in
a highly reliable product with a long MTBF.
Feature
Emergency Outdoor Industrial Rainproof Telephone for Underground
with Light
-Standard Analogue phone or SIP phone
-Vandal resistant handset and armored cord
- Weather proof protection to IP66-IP67
- With LED lamp fixed on the top, When there is a incoming call,
the lamp will flashing.
- Full keypad with memory, 0-9 buttons can be programmed as speed
dial button.
“LR”button for last number redial
“R”for flash recall
“M”for muting
-Can be programmed remotely by tone phone or locally via keypad
- On wall mounting, Simple installation
- Inductive coupler fitted as standard for hard of hearing
- Phone line powered (Analogue)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- CE, FCC, RoHS, ISO9001 compliant
| Casing Material | Aluminum |
| Colors | Yellow, other colors to special order |
| Handset | Yes |
| Keypad | Full Keypad |
| Temperature/Operating | Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Weather Resistance | IP66-IP67 |
| Ringing Tone | Shrill warble tone 90 dBA @ 1 metre typical |
| Hook switch | No |
| Push button | Vandal resistant stainless steel button |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Installation | wall-mounting |
| Power Input | 12-24V DC |
Application
Emergency Outdoor Industrial Rainproof Telephone for Underground
with Light
The JR100 Series Weatherproof Telephones are designed for use by
the railways, power stations, the armed services and heavy industry
which require very reliable telephony under adverse conditions.
Packing
Emergency Outdoor Industrial Rainproof Telephone for Underground
with Light
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm )
Packaging materials: Pearl cotton, Carton
Net weight: 6KG
Gross weight: 7KG
Our Company
Emergency Outdoor Industrial Rainproof Telephone for Underground
with Light
J&R is China based design and manufacturer of rugged
communications equipment. Our telephones and systems work, and
last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP
versio,GSM/3G version)
We have efficient management team, rich industry experience,
professional R&D capabilities, quality supply chain management,
strict quality inspection and excellent team.
