    Highway Emergency Telephone Vandal Resistant Outdoors SOS Telephone Pillar

    Ask Lasest Price
    Brand Name : J&R
    Model Number : JR-TP-03
    Certification : CE, FCC, RoHS, ISO9001
    Price : Reconsideration
    Payment Terms : L/C, T/T
    Supply Ability : 3000 sets per month
    Delivery Time : 2-5 working days
    • Product Details
    • Company Profile

    Highway Emergency Telephone Vandal Resistant Outdoors SOS Telephone Pillar

    Highway Emergency Telephone Vandal Resistant Outdoors SOS Telephone Pillar

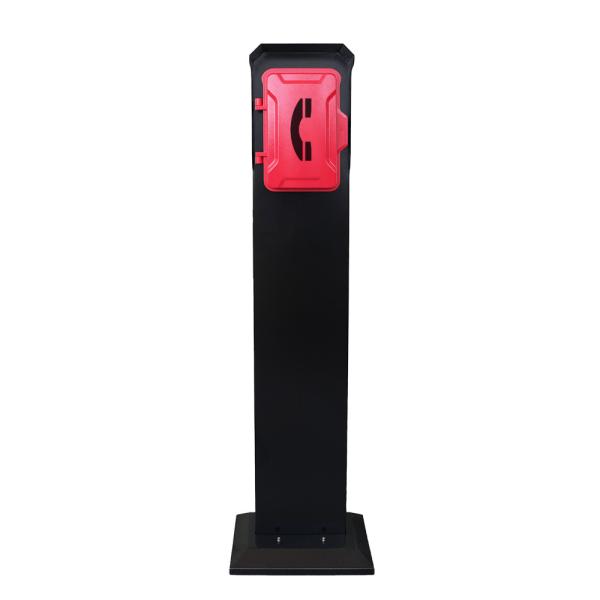

    JR-TP-03 Emergency Telephone Pillar is an ideal security solution for remote and high-risk areas. Painted for outdoor use.

    They are often used at university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.


    • Emergency Telephone Pillar, painted for outdoor use. Can choose to add LED lights
    • Mechanical characteristics: Sleek and harmonious design free of sharp edges, prepared for the containment of auxiliary circuits
    • Material: Made of galvanized steel, It can be manufactured in stainless steel
    • Colour: Custom black, Standard shipment is red (other colour on demand)
    • Fixing: on floor

    MAIN FEATURES

    - There are 3 options for the connecting (Analogue, SIP, 3G / 4G)

    - Programmable for speed-dialing (PPT)

    - Weather protection IP67

    - Can be programmed remotely

    - Telephone line powered for analogue phone

    - Additional power supply required for VoIP or GSM type

    - The material of the tower is cold rolled steel with powder coated body

    - Vandal-resistant structure and coating designed to resist extreme weather conditions

    - A variety of signage, graphics and colors choices are available

    - CE, FCC, RoHS, ISO9001 Compliant


    TECHNICAL PARAMETERS

    Analogue Version
    Power SupplyFrom the analogue telephone network
    Supply Voltage24 VDC to 65 VDC
    Supply Current20 mA DC to 100 mA DC
    Ringer Volume

    - 80dB(A) at a distance of 1 m

    - 110dB(A) at a distance of 1 m (for external horn speaker)

    Dialing MethodDTMF mode in accordance with ITU-T recommendation Q.23.

    SIP Version
    Power SupplyPoE or 12V DC
    Power Consumption

    -Idle:1.5W

    -Active:1.8W

    SIP ProtocolSIP 2.0 (RFC3261)
    Support CodecG.711 A/U, G.722 8000/16000, G.723, G.729
    Communication TypeFull duplex
    Ringer volume

    - 90~95dB(A) at a distance of 1 m

    - 110dB(A) at a distance of 1 m (for external horn speaker)


    Ambient conditions
    Protection typeIP 67 as per EN60529
    Operating temperature-40°C to +70°C
    Storage temperature-45°C to +85°C

    Package Information

    Unit size: 1510 *270 *210 (mm)

    Packaging materials: Pearl cotton, Wooden Box

    Net weight: 30 KG

    Gross weight: 35 KG


    J&R Emergency Telephone Pillar are Installed Beside British Motorways
