Pillar Mounting Outdoor SOS Hands Free Telephone Impact Resistant Vandal Proof

J&R Technology Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Pillar Mounting Outdoor SOS Hands Free Telephone Impact Resistant Vandal Proof from wholesalers

    Buy cheap Pillar Mounting Outdoor SOS Hands Free Telephone Impact Resistant Vandal Proof from wholesalers
    • Buy cheap Pillar Mounting Outdoor SOS Hands Free Telephone Impact Resistant Vandal Proof from wholesalers
    • Buy cheap Pillar Mounting Outdoor SOS Hands Free Telephone Impact Resistant Vandal Proof from wholesalers

    Pillar Mounting Outdoor SOS Hands Free Telephone Impact Resistant Vandal Proof

    Ask Lasest Price
    Brand Name : J&R
    Model Number : JR-TP-03
    Certification : CE, FCC, RoHS, ISO9001
    Price : Reconsideration
    Payment Terms : L/C, T/T
    Supply Ability : 3000 sets per month
    Delivery Time : 2-5 working days
    • Product Details
    • Company Profile

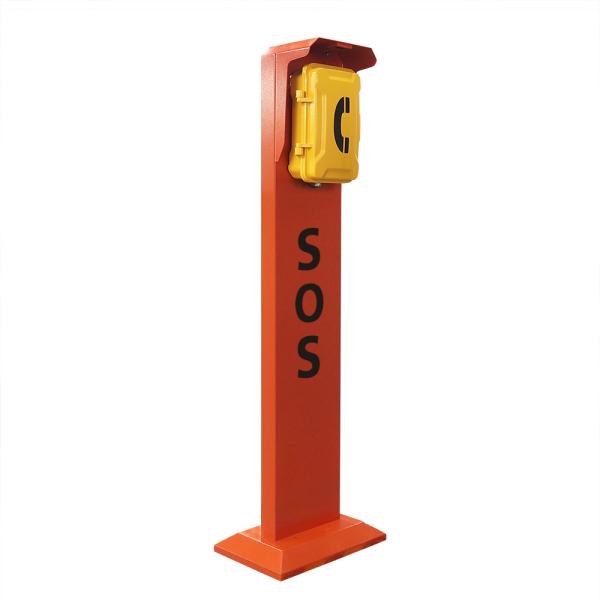

    Pillar Mounting Outdoor SOS Hands Free Telephone Impact Resistant Vandal Proof


    This JR101-FK is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing

    complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
    Extremely easy to install. The cable entrance is on the bottom of the phone to prevent from artificial damage, while the

    button is weather and vandal resistant.


    • - Standard Analogue phone, or SIP phone, or GSM/3G phone
    • - Aluminum alloy die-casting body
    • - Vandal resistant handset and armored cord
    • - Weather proof protection to IP67
    • - Pillar mounting, simple installation
    • - Phone line powered (Analogue)
    • - External power supply or PoE (SIP-VoIP)
    • - RJ45 port for SIP phone
    • - Inductive coupler fitted as standard for hard of hearing
    • - CE, FCC, ISO9001, RoHS compliant


    Vandal-proof Outdoor SOS Hands free Telephone,Impact Resistant Emergency Phone Pillar


    Specification
    Analogue Version
    Power Supply
    From the analogue telephone network
    Supply Voltage
    24 VDC to 65 VDC
    Supply Current
    20 mA DC to 100 mA DC
    Ringer Volume
    - 80dB(A) at a distance of 1 m
    - 110dB(A) at a distance of 1 m (for external horn speaker)
    Dialing Method
    DTMF mode in accordance with ITU-T recommendation Q.23
    SIP Version
    Power Supply
    PoE or 12V DC
    Power Consumption
    -Idle:1.5W
    -Active:1.8W
    SIP Protocol
    SIP 2.0 (RFC3261)
    Support Codec
    G.711 A/U, G.722 8000/16000, G.723, G.729
    Communication Type
    Full duplex
    Ringer volume
    - 90~95dB(A) at a distance of 1 m
    - 110dB(A) at a distance of 1 m (for external horn speaker)
    Ambient conditions
    Protection type
    IP 66 as per EN60529
    Operating temperature
    -35°C to +70°C
    Storage temperature
    -45°C to +85°C
    Application

    Vandal-proof Outdoor SOS Hands free Telephone,Impact Resistant Emergency Phone Pillar


    They are often used at university and college campuses, roadsides, streets, public square, car-parks, police stations, outside
    buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.

    Packaging:
    Phone size: 2400 *436 *306 (mm)
    Packaging materials: pearl cotton, wooden box
    Gross weight: 25 KG
    Net weight: 30 KG
