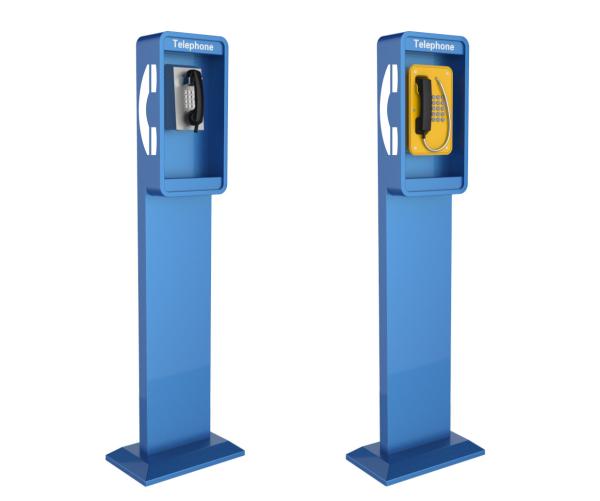

Outdoor vandal proof VoIP telephone Pillar for SOS, Roadside
Emergency Telephone
It is designed to meet the needs of clients who experience loss
through vandalism. Ideal for schools, streets, public square, court
houses, rail platforms, car-parks, police stations,
hospitals,outside buildings, gate entry, etc.
The Emergency Telephone with column mounting is based on a cold
rolled steel with powder coated body, and stainless faceplate,
offers increased resistance to vandalism, and ensure that the
primary function of communications is maintained at all times.
APPLICATIONS
Ideal for Street, Canpus, School, Railway trackside, Marine applications, Tunnels. Underground
Mining, Firefighter, Industrial, Prisons, Jail, Parking lots,
Hospitals, Guard Stations, Police stations, Bank halls, ATM
machines, Stadiums, inside and outside building etc.
MAIN FEATURES
- Outdoor Tlephone botth with emergency telephone
- Robust construction, Vandal resistant
- Weather protection IP65
- Tamper resistant fixings
- Simple installation
- Fast-fit terminal connection
- Full Keypad
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- Telephone line powered
- Weatherproof and corrosion resistant handset
- Stainless steel armoured handset cord
- CE, FCC,ROSH,ISO9001 compliant
| Telephone version | Power supply |
| Analogue Version | Telephone line powered |
| VoIP Version | POE powered |
| GSM Version | DC powered, Solar powered
|
TECHNICAL PARAMETERS
| SIP Version |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W
-Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package Information
Weight:10-45kg
Dimensions(mm):1500 x 436 x 306 mm or customized by clients
Packaging materials: pearl cotton, carton, wooden box
