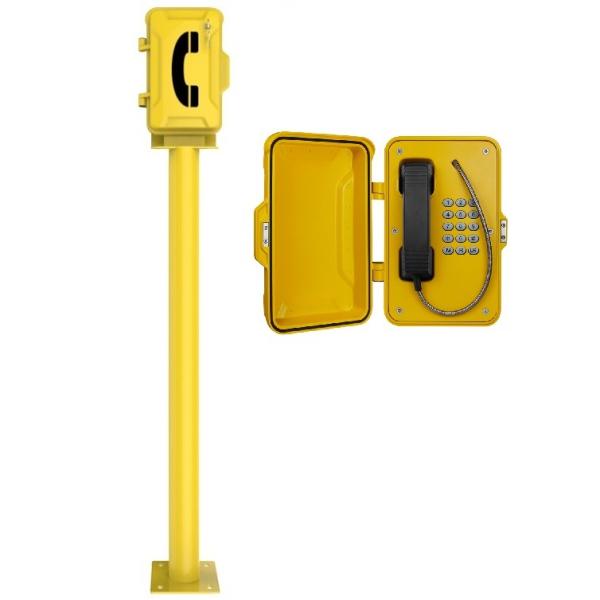

Vandal Resistant Outdoor SOS Telephone Pole, Roadside Emergency
Call Box
The Emergency Telephone with column mounting is based on a cold
rolled steel with powder coated body, and stainless faceplate,
offers increased resistance to vandalism, and ensure that the
primary function of communications is maintained at all times. It is designed to meet the needs of clients who experience loss
through vandalism.
MAIN FEATURES
- Standard Analogue phone, or SIP phone, or GSM/3G phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP67
- Full keypad with memory
- Wall/ Pillar mounting, simple installation
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
- Phone line powered (Analogue)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
APPLICATIONS
Ideal for Campus, School, Street, Railway Trackside, Tunnels. Underground Mining, Firefighter,
Industrial, Prisons, Jail, Parking lots, Hospitals, Hotels, Guard Stations,
Police stations, Stadiums, inside and outside building etc.
TECHNICAL PARAMETERS
| Analogue Version |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W
-Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package Information
Dimensions:1500 x 436 x 306 mm (or customized by clients)
Packaging materials: pearl cotton, wooden box
Net Weight: 20 KG
Gross weight: 30 KG
