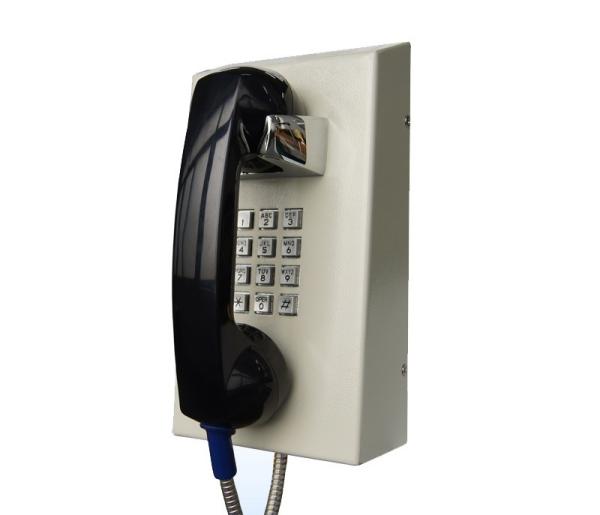

Vandal Resistant Telephone for Correctional Center Inmate, Rugged
Analog Prison Telephone
This Vandal Resistant Telephone with armored cord is housed in
robust cold rolled steel box and manufactured to a high standard,
it is offer increased resistance to vandalism, and ensure that the
primary function of communications is maintained at all times,
resulting in a highly reliable product with a long MTBF.
MAIN FEATURES
-Standard Analogue phone
-Robust construction, Vandal resistant
-Weather protection IP54-IP65
-Tamper resistant fixings
-Simple installation
-Fast-fit terminal connection
-Full rugged Keypad
-Can be programmed remotely by tone phone or locally via keypad
-Non-volatile memory
-Telephone line powered (Analog)
-Weatherproof and corrosion resistant handset
-Stainless steel armoured handset cord
-CE, FCC, RoHS compliant
APPLICATIONS
Ideal for Railway applications, Marine applications, Tunnels.
Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking
lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM
machines, Stadiums, inside and outside building etc.
TECHNICAL PARAMETERS
| Analogue Version |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| Ambient conditions |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
PACKAGE
unit size: 247 *130 *132 (mm)
Carton size: 340 *235 *165 (mm)
Packaging materials: pearl cotton, carton
Net weight: 3.5 KG
Gross weight: 4 KG
