    Robust Hotline Explosion Proof Telephone / Industrial VoIP Phone For Power Station

    Ask Lasest Price
    Brand Name : J&R
    Model Number : JREX103-CB
    Certification : ATEX, CE, FCC, RoHS, IP67, ISO9001
    Price : Reconsideration
    Payment Terms : L/C, T/T
    Supply Ability : 1000 sets per month
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Robust Hotline Explosion Proof Telephone / Industrial VoIP Phone For Power Station

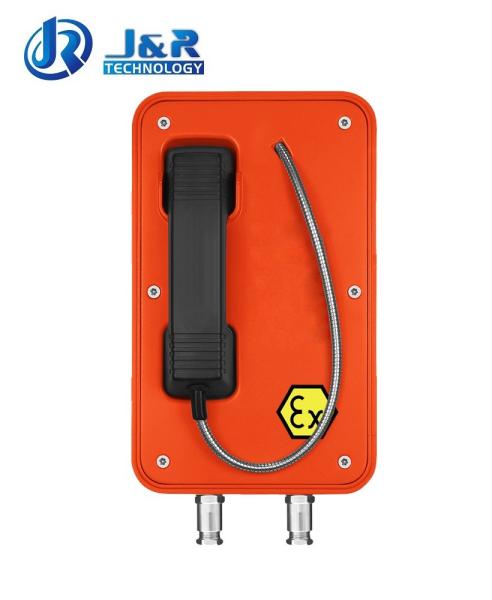

    Robust Hotline Explosion Proof VoIP Telephone for Power Station, Industrial EX-proof Phone


    This JREX103-CB Hotline Explosion-proof VoIP Telephone is fully contained within a corrosion resistant cast aluminium weatherproof case which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

    Extremely easy to install. The cable entrance is on the bottom of the phone to prevent from artificial damage, while the button is weather and vandal resistant.


    This product has the following explosion protection:
    II 2G Rx e ib [ib] mb IIC T6 Gb
    III 2D Ex ib [ib] tb IIIC T135 °
    -40 °C ≤ Ta ≤ +60 °C/+40°C
    Zone 1, Zone 2, Zone 22



    MAIN FEATURES
    - Corrosion resistant aluminum alloy die casting housing

    - IP67 environmental ratings
    - Certificated for use in Hazardous areas of Gas Group IIB/IIA
    - Ex ’d’ protected
    - Temperature classification:T4

    - Programmable for auto-dial

    - Power supply: Power over Ethernet (PoE)
    - SIP or H323 protocols (Compatible with all PBX’S)
    - Fully configurable through any internet browser or the on-board display
    - Handset with Noise canceling microphone,for effective communication from noisy areas

    (Armored SS cord stands up to rough treatment,optional for black curly cord )

    - Hermetically sealed non-contact hook sensing switch improves system reliability
    - Mounting: Wall/column/structural
    - Captive cover screws prevent loss during installation



    TECHNICAL SPECIFICATION

    SIP Version
    Power SupplyPoE or 12V DC
    Power Consumption-Idle:1.5W
    -Active:1.8W
    SIP ProtocolSIP 2.0 (RFC3261)
    Support CodecG.711 A/U, G.722 8000/16000, G.723, G.729
    Communication TypeFull duplex
    Ringer volume- 90~95dB(A) at a distance of 1 m
    - 110dB(A) at a distance of 1 m (for external horn speaker)
    Ambient conditions
    Protection typeIP 66 as per EN60529
    Operating temperature-40°C to +70°C
    Storage temperature-45°C to +85°C

    APPLICATIONS
    1. Suitable for explosive gas atmospheres Zone 1, 2, 22.
    2. Suitable for temperature class T1 ~ T6.
    3. Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.




    PACKAGE
    Unit Size: 246*339*109mm (H*W*D)
    Carton Dimension: 200 * 300 *440 mm (H * W * D)
    Packaging materials: pearl cotton, carton
    Net Weight: 7 KG
    Gross weight: 8 KG
