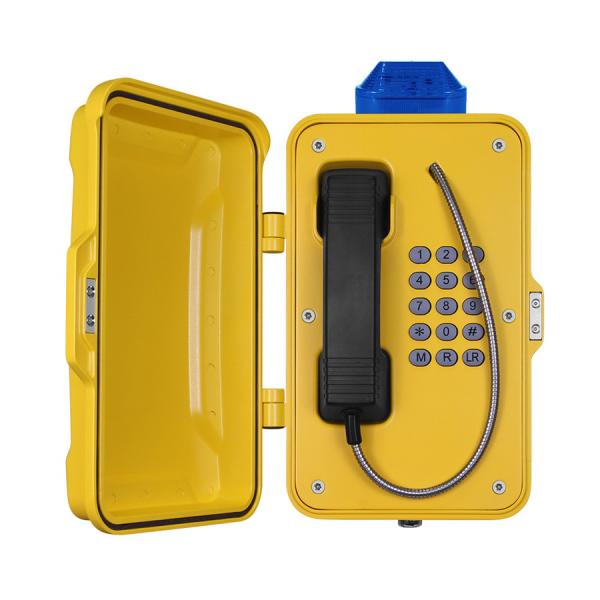

IP67 Weatherproof Industrial Telephone with Beacon, PoE powered Tunnel Phone

Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platforms, highways side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and related heavy duty industrial applications, etc.

Main Features:
- Standard SIP/ VoIP phone
- Aluminum alloy die-casting body
- Vandal resistant handset and armored cord
- Weather proof protection to IP67

- Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
“LR” button for last number redial
“R” for flash recall
“M” for muting

- With LED lamp fixed on the top, When there is a incoming call, the lamp will flashing.
- Wall/ Pillar mounting, simple installation

- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone

- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant

Optional
- Key lockable latch
- Upper & lower internal mounting plates
- Flat label area or custom embossed logo on door
- Vandal resistant screws for upper mounting plate

Technical Parameters

Voice Features

- Support 2 lines SIP, SIP 2.0 (RFC3261)

- Codec: G.711A/u, G.7231 high/low, G.729, G.722,G.726

- Echo cancellation: Support G.168 and hand-free can support 96ms

- Supports full duplex.

- SIP support SIP domain, SIP authentication(none, basic, MD5), DNS name of the server, peer to peer

- SIP support 2 servers, user can through each server to call in and out

Network Features

- WAN/LAN: support Bridge mode

- Support PPPoE for xDSL

- Support VLAN

- Support Stun penetration

- Support DHCP get IP on WAN port

Package
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 6 KG
Gross weight: 7 KG

J&R Technology Ltd. is a premier designer and manufacturer of standard and custom telephone solutions. Our products deliver industry-proven and innovated high quality telephone technology to a broad range of private, and public businesses, industries, and applications.

Our products include telephone systems, various telephone terminals such as industrial telephones, weatherproof heavy-duty telephones, explosion proof telephones, vandal proof public telephones, emergency telephones, help points, call stations,s and others like acoustic telephone hoods, telephone pillars, and telephone accessories.

As a reliable supplier of industrial telephones, we have been sharing the equipment and systems with different customers and users all over the world. Our main market is South America,North America, Europe, Australia, Southeast Asia, Africa, Mid East, and other international markets. And we have built good cooperation with many international renowned corporations, including.

Dedication and profession have been our pursuing goals during any procedures of our production, not only in developing and quality controlling but also in marketing and after sales. We serve any single potential customer with the most suitable solutions and systems.
