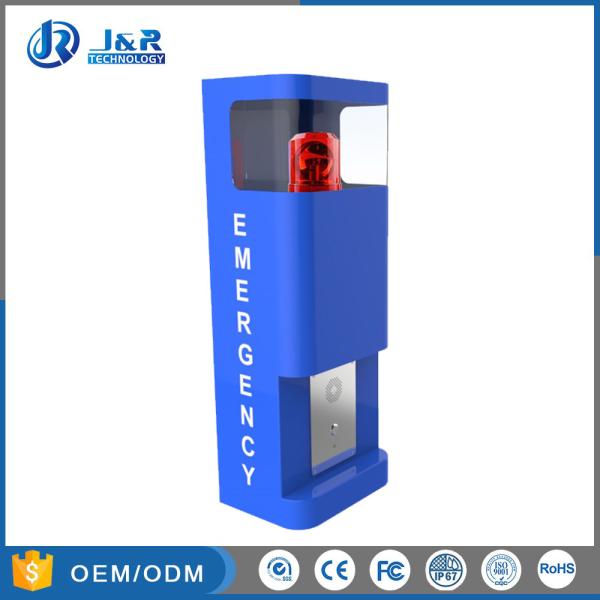

Anti-vandal SIP Emergency Help Point for Car-park, Basement Parking
SOS Telephone
The Blue Light Emergency Help Point, is based on a cold rolled
steel with powder coated body, and stainless faceplate, offers
increased resistance to vandalism, and ensure that the primary
function of communications is maintained at all times. It is an
ideal security solution for remote and high-risk areas.
This vandal-resistant help point serves as a great deterrent to
crime. An always-lit LED Blue Light mounted atop the tower provides
high visibility and gives passers-by a sense of security. Emergency
call can be placed with a simple push of a button.
Main Features:
lStandard SIP phone
l Aluminum alloy die-casting body for phone, and cold rolled steel
for pillar
l Weather resistant: IP65-IP67
l Built-in auto-dialer, 2-way hands-free communication with built-in
speaker and microphone
l Vandal resistant metal button programmable for speed dial
l Support message function for low battery, door opening & low signal
strength.
l Pole mounting, simple installation
l Standard or Customized units
l External power supply or PoE (SIP-VoIP)
l RJ45 port for SIP phone
l Solar panels and batteries are sized according to the installation
location. A charger, batteries and other equipment mount inside the
tower.
l CE, FCC, RoHS, ISO9001:2015 compliant
Applications
This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside
buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote
locations where local power is not available.
Technical Parameters
| SIP Version |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W
-Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package
Packaging Details
Unit size: 300 *220 *800 (mm)
Packaging materials: Pearl cotton, Wooden Box
Net weight: 20 KG
Gross weight: 30 KG
